Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal

Place of Origin : Guangdong, China

Brand Name : HXT

MOQ : 1

Price : $23,000-23,500

Voltage : 380 V

Product Name : PCBA Cleaning Machine

Usage : PCB Washing Machine

Function : Automatic

Industry : PCBA Cleaning Machine

Type : Electronic components PCBA cleaning Solder Flux

Contact Now

Electric Plasma Dry Ice PCB Cleaner Misprint Removal Conformal Coating Pre Treatment System User Friendly Programmable PLC Controlled PCBA Washer Easy Operation Durable Reliable Equipment Cost Effective PCB Cleaning Machine Competitive Price Hot Sale New Design Innovative Technology

SME-5600 PCBA Cleaning Machine Introduction

SME-5600 is an energy-saving, environmental protective, integrated, high-end cleaning machine. It can automatically complete cleaning, rinsing, drying process in one chamber by just push the start key. SME-5600 main application: Car electronics PCBA, Military PCBA, Aerospace PCBA, Telecom PCBA, Medical device PCBA, Digital meters PCBA. For Rosin flux, No-clean flux,Water-soluble flux , Solder paste ball and other organic and inorganic pollution materials on SMT and THT PCBA.

Automatic Water-based Industrial PCBA Cleaning Machine for Solder Flux Removal

Product Parameters

Model	SME-5600 SPEC
retangle Cleaning basket	L610 x W560 x H100(mm)x2 layers
liquid tank capacity	60L
concerntrate liquid tank capacity	30L
temporary tank capacity	18L
clean time	10~20min(0~99min adjustable)
rinse time	1~3min/times（0~10min adjustanble）
hot air dry time	15~30min（0~60min adjustable）
rinse times	3~5times（1~59 times adjustable）
cleaning liquid temp	room temp~75℃
rinse DI water temp	room temp~75℃
hot air dry temp	room temp~99℃
liquid tank heater power	9KW
temporary tank heater power	6KW
Hot air heater power	7.5KW
Resistivity range	0~18MΩ
electric pump	4.0KW
air pump	1 Inch
liquid Spray pressure	0~5kgf/cm2
liquid filter	0.2um
DI water filter	0.2um
Air vent size	φ100XH30(mm)
Power/air supply	AC380V,50/60HZ,65A /0.5~0.7Mpa,200~400L/Min
Machine size	L1300xW1200xH1850（mm）
Machine weight	600KG

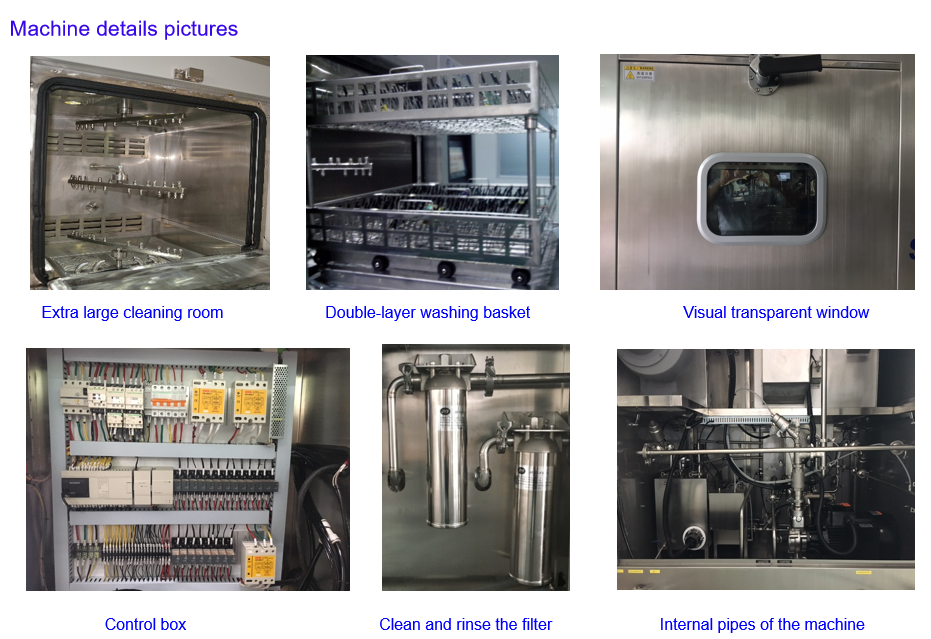

Machine details pictures

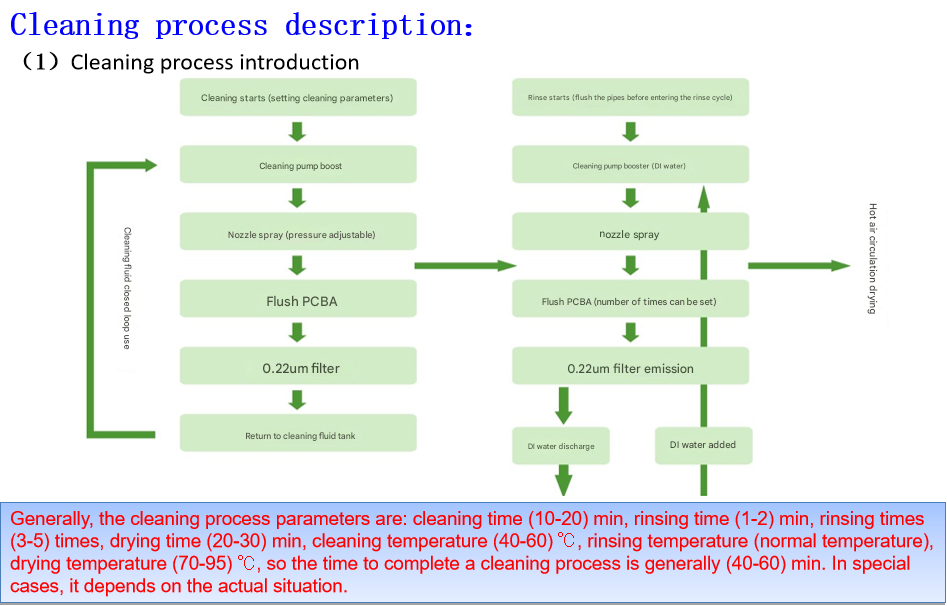

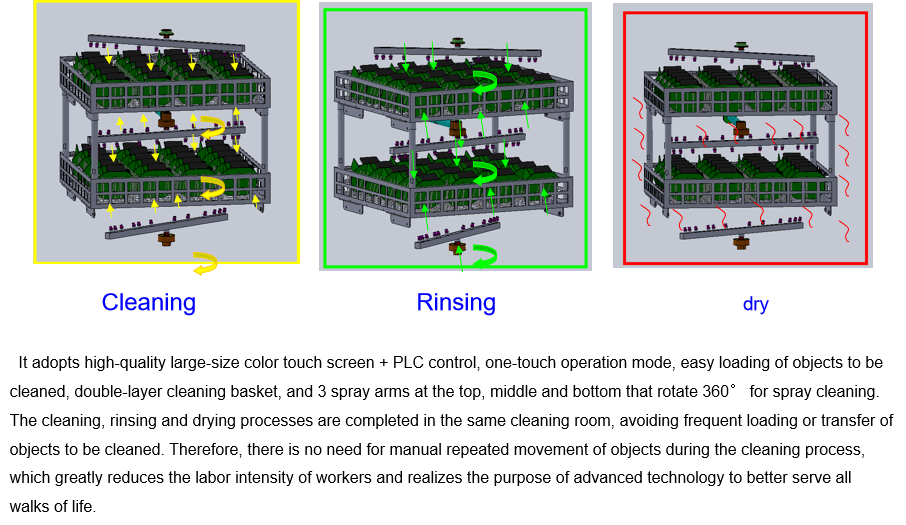

Workflow

Product Features

1. The whole process visible : the cleaning process can be visible through the front window and LED light. 2. Automatic cleaning mode: clean, rinse, dry process can complete in one compact machine. 3. The most scientific nozzle design: the use of left and right incremental arrangement --- to enhance cleaning efficiency,back and forth movement of basket - completely solve the cleaning blind area; 4. The nozzle pressure adjustable design: to solve the small and light PCBA in the high pressure spray under the conditions of the collision, splash problem; 5. The standard dilution tank heating system: greatly improve the cleaning efficiency. Shorten the cleaning time; 6. A comprehensive cleaning system: for SMT; THT PCBA after welding the surface of the residual rosin, water-soluble flux, no-clean flux / solder paste and other organic and inorganic pollutants for thorough and effective cleaning; 7. Convenient cleaning dilution to add: can be manually added, but also by setting the ratio (5% to 25%) automatically with DI water and chemical liquid (option);

8. Temporary tank and auxiliary heating system: Temporary tank is used to store dilution and DI water. During cleaning process, the air pump absorb dilution form dilution tan and send to temporary tank ,then wash pump absorb dilution from temporary tank to clean PCBA. After cleaning process, the air pump absorb dilution from temporary tank and send them back to dilution tank. During rinsing process, the air pump absorb DI water from DI water produce machine and send it to temporary tank, each time after rinsing ,DI water will be discharged form temporary tank. The rinse water can be heated as needed; 9. Lower operating costs: built-in filter makes the dilution repeated used. By using compressed air blow method at the end of cleaning process : blow the residual detergent off from pipeline and the pump , which effectively save 50% dilution. 10. The concentration lqiuid compensation function: the concentration of dilution will be getting lower and lower after repeated use which will affect the cleaning effect and cleaning efficiency of PCBA, at this time , need to add some concentrated liquid to dilution tank to compensate the dilution concentration. concentration compensation can improve the effective use of liquid, the concentration liquid adding amount can be adjustable according to the real situation.

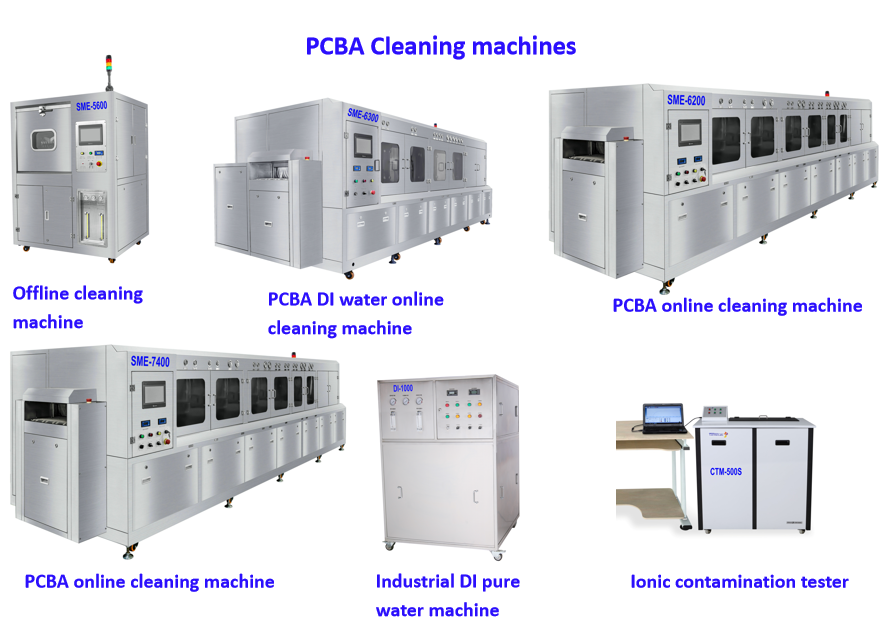

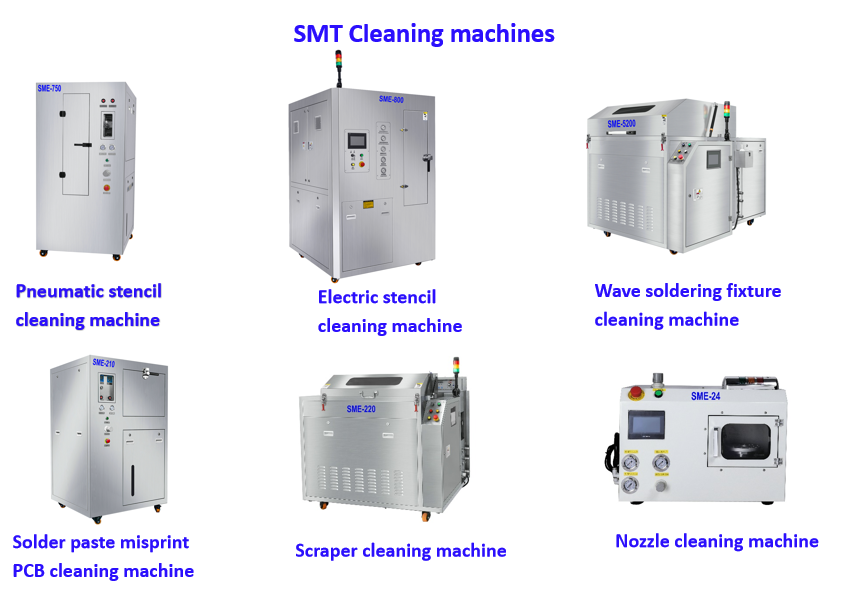

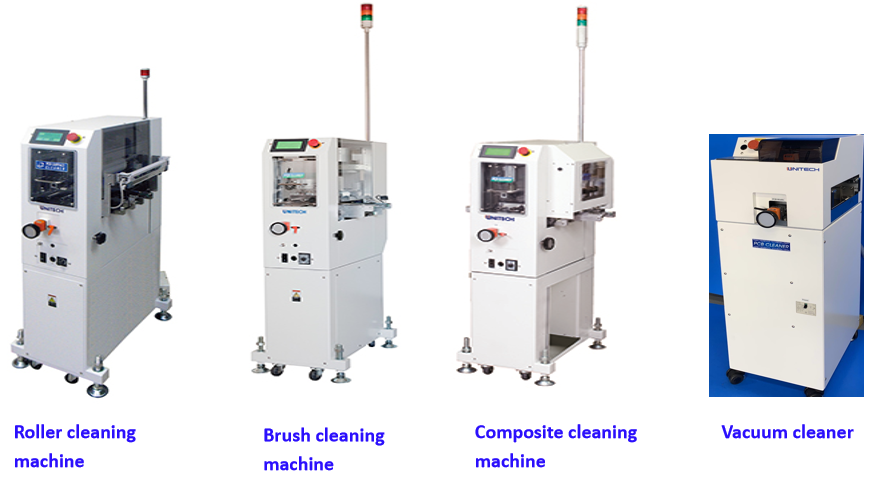

Same Series Products

FAQ

1) This is the first time I use this kind of machine, is it easy to operate? There is an English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail / Skype/ phone / trade manager online service. 2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period. If the part is less than 0.5KG , we pay the postage. If it exceeds 0.5KG, you need to pay the postage. 3) MOQ ? 1 set machine, mixed order is also welcomed. 4) How can I buy this machine from you? ( Very easy and flexible !) 1. Consult us about this product on line or by e-mail. 2. Negotiate and confirm the final price , shipping , payment methods and other terms. 3. Send you the proforma invoice and confirm your order. 4. Make the payment according to the method put on proforma invoice. 5. We prepare for your order in terms of the proforma invoice after confirming your full payment. 6. And 100% quality check before shipping. 7. Send your order by air or by sea. 5) Why choose us ? 1. We're a real manufacturer. 2. We have more than ten years of experience in the machine industry. 3. We provide high quality and delivery on time. 4. We provide 24 hours after-sale timely.
