Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling

Place of Origin : Guangdong, China

Brand Name : HXT

MOQ : 1

Price : $1,400

Weight : 150 KG

Voltage : 220 V

Model : HXT-V1200

Dimensions : L1300 x W960 x H1650

Board size : 50 x 50mm / 1200 x 300mm

Transmission speed : 9M/min

Power supply : AC220V/50-60HZ

Transmission motor : 42*48 stepper motor

Lift motor : 45W brake motor

Control System : PLC control

Control panel : Touch screen

Gas source : 0.4-0.6Mpa

Translation device : Stepping motor and guide rail

Suction device : Four-point suction plate

Frame material : 3.0mm cold plate

Contact Now

SMT PCB Vacuum Loader Magazine

High Efficiency SMT PCB Vacuum Loader Magazine Type Automatic Machine With Sensors For LED Assembly Production Line Automatic SMT PCB Vacuum Suction Loader Unloader System Mini Magazine Type With SMEMA Signal For Manufacturing Line SMT Automatic PCB Vacuum Loader Unloader Machine Translational Suction Equipment For Electronics Assembly Production Automatic SMT Magazine Loader Unloader Vacuum Suction PCB Machine With Sensor Protection For Production Line System

Automatic SMT PCB Vacuum Suction Loader and Unloader with SMEMA Signal and 1 Year Warranty for Magazine Type PCB Handling

Product Description

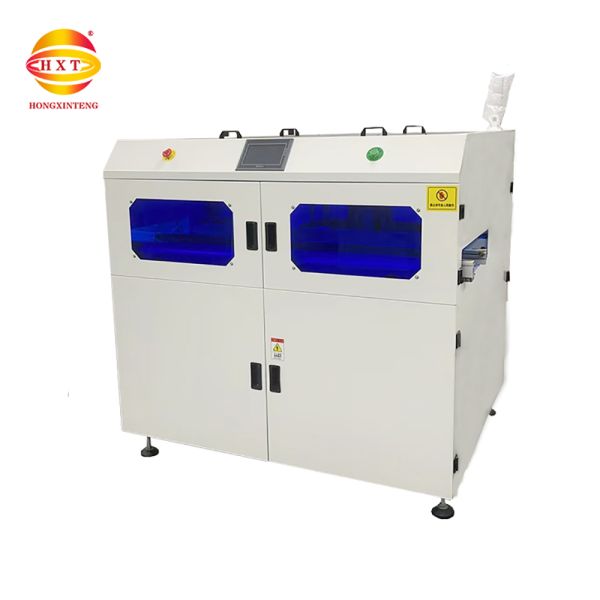

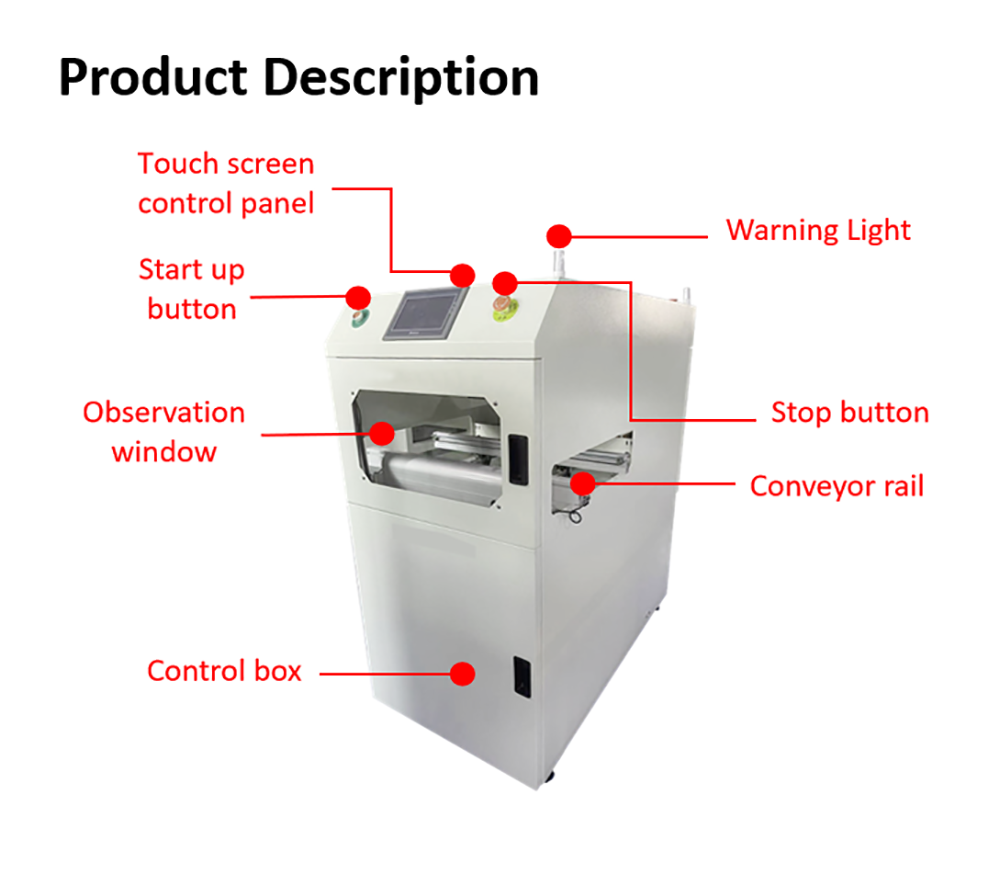

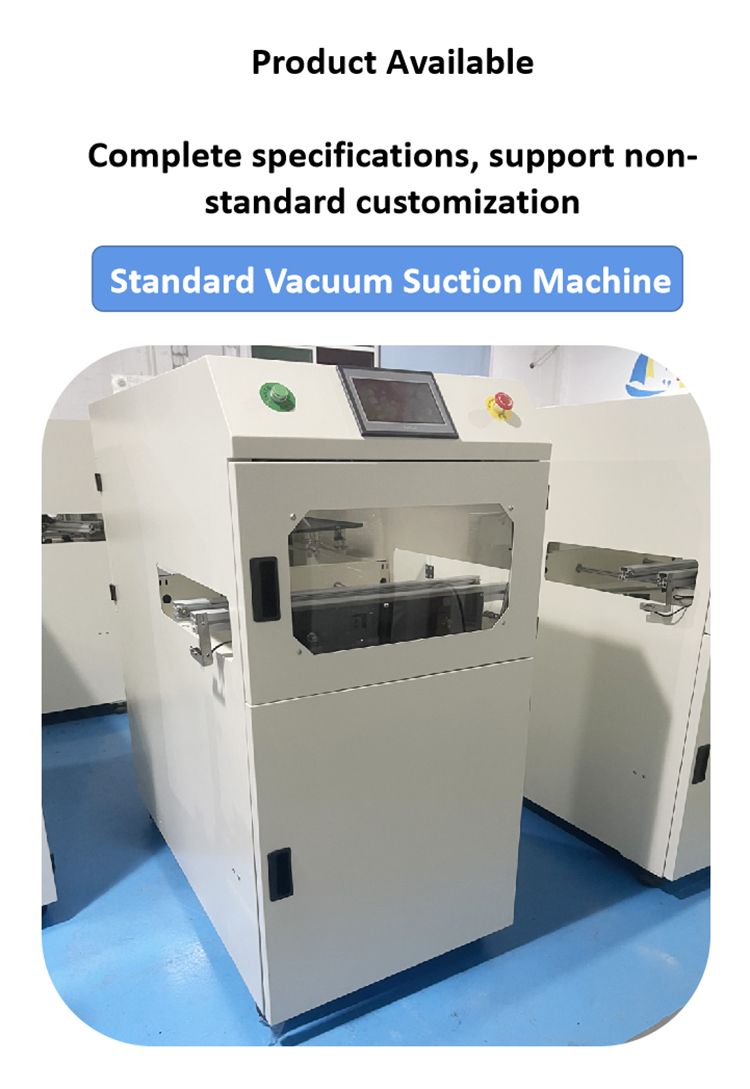

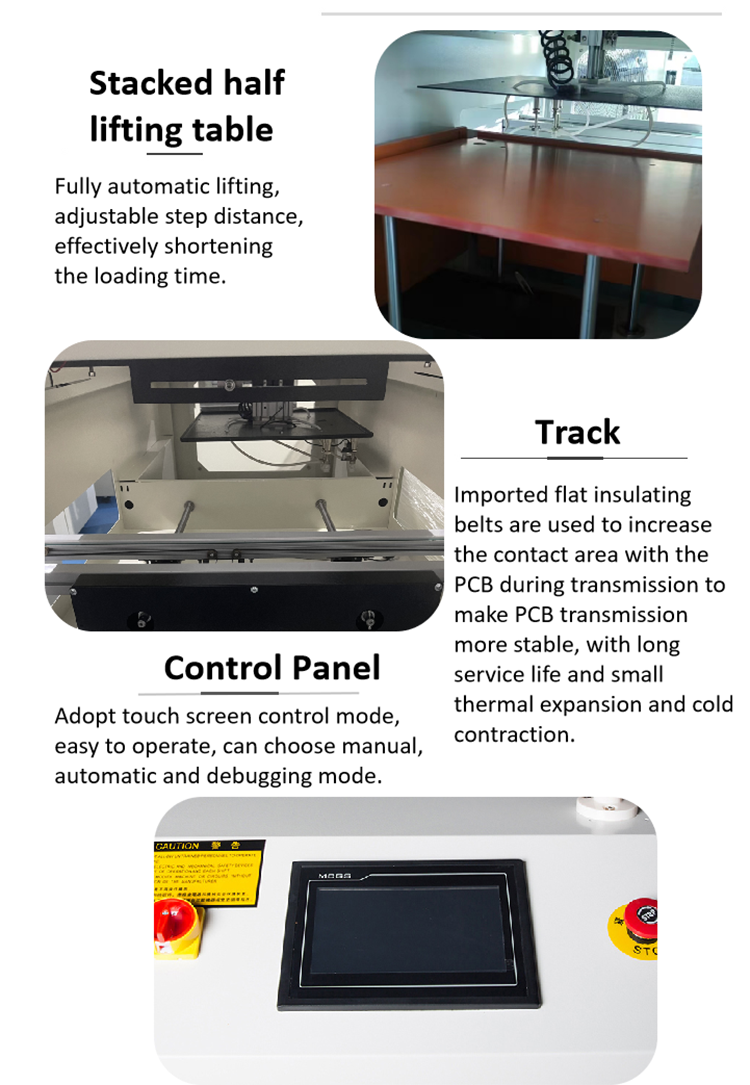

1. The closed design ensures the highest level of safety protection. 2. The top safety cover can be opened to facilitate the handling of machine hardware during maintenance. 3. The position of the suction nozzle can be adjusted to ensure that the circuit board is clamped. 4. Stable and balanced width adjustment device (hand control screw adjustment). 5. Small machine foot print. 6. The control system adopts PLC control, the operation interface adopts touch screen, and is equipped with automatic alarm system. 7. The frame structure adopts sheet metal welding, the surface is painted, and the color man-machine interface window. 8. The lifting mechanism adopts the brake motor lifting setting, and the step distance is adjustable, which effectively shortens the board loading time, and can stack up to 300 PCBs (0.6 mm thick circuit boards). 9. The transfer structure adopts the stepping motor transfer method, the start and stop can be set by acceleration and deceleration, the transmission is stable, and it is not easy to punch the board. 10. Equipped with a standard SMEMA signal port, it can be connected online with any other equipment.

Product Specification
Model	HXT-V400	HXT-V450	HXT-V1200

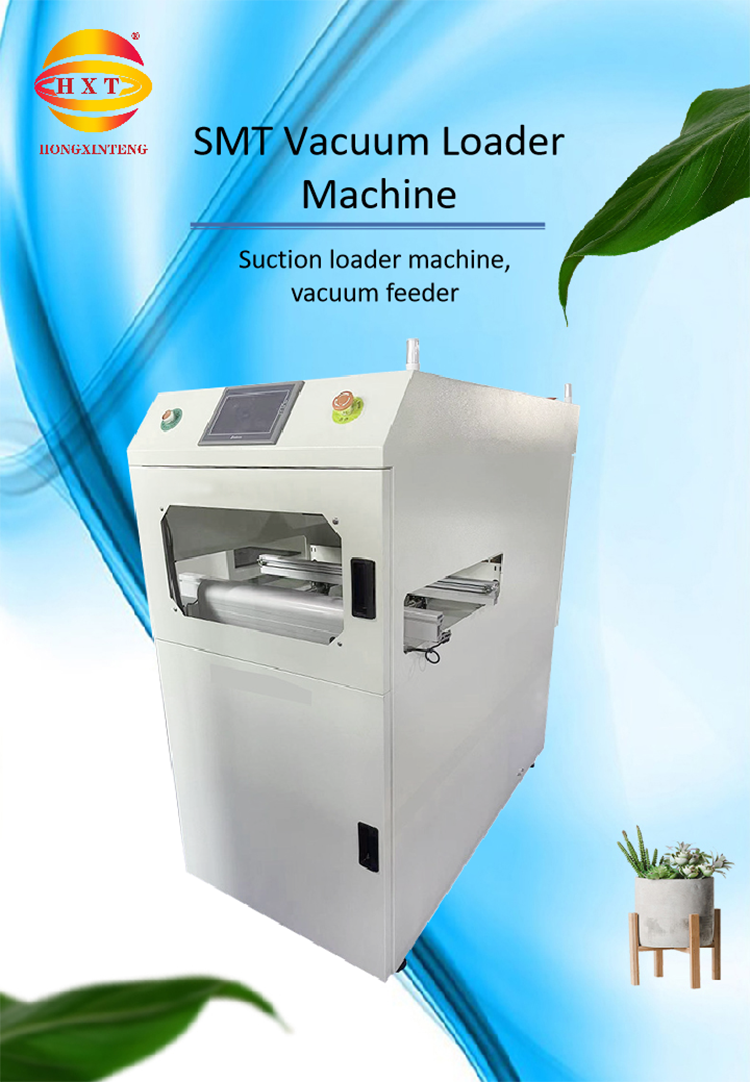

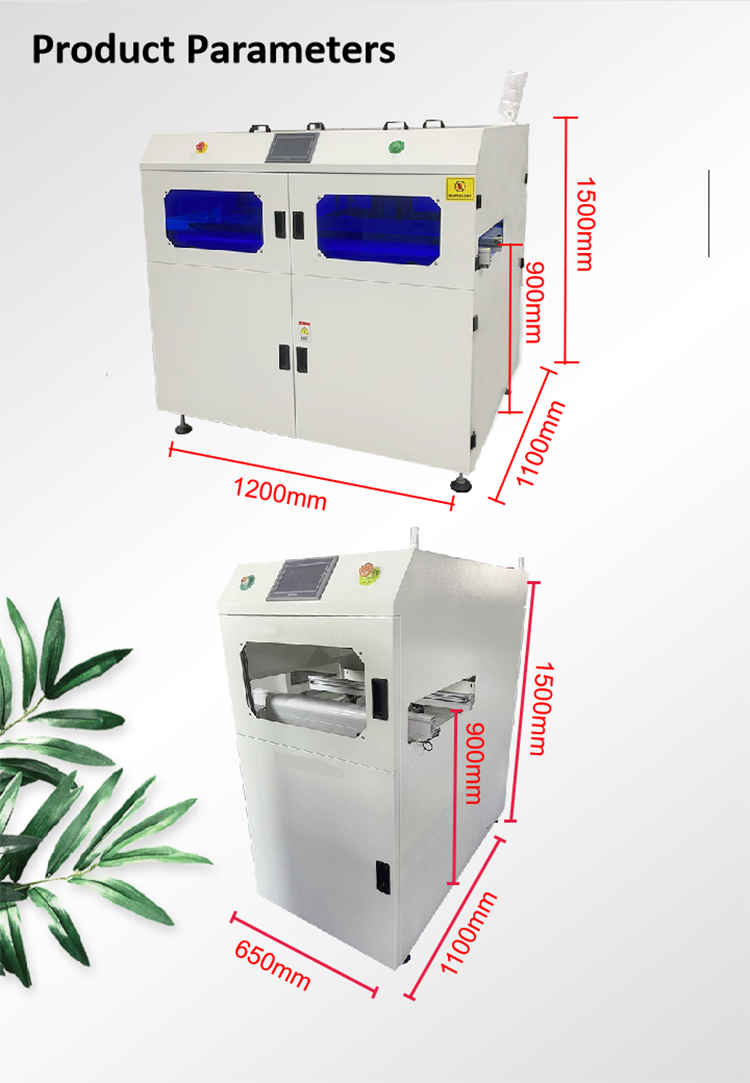

Dimensions (LxWxH)	L590 x W960 x H1650	L680 x W1250 x H1650	L1300 x W960 x H1650
Board size (LxW)	50 x 50mm / 330 x 300mm	50 x 50mm / 450 x 450mm	50 x 50mm / 1200 x 300mm
Weight	About 100Kg	About 120Kg	About 150Kg
PCB storage board quantity	About 300pcs
Transmission direction	Track front fixed, left→right or right→ Left transmission
Transport height	900+30/-30mm, foot cup height adjustment
Belt for	7mm flat belt
Transmission speed	9M/min
Power supply	AC220V/50-60HZ
Transmission motor	42*48 stepper motor
Lift motor	45W brake motor

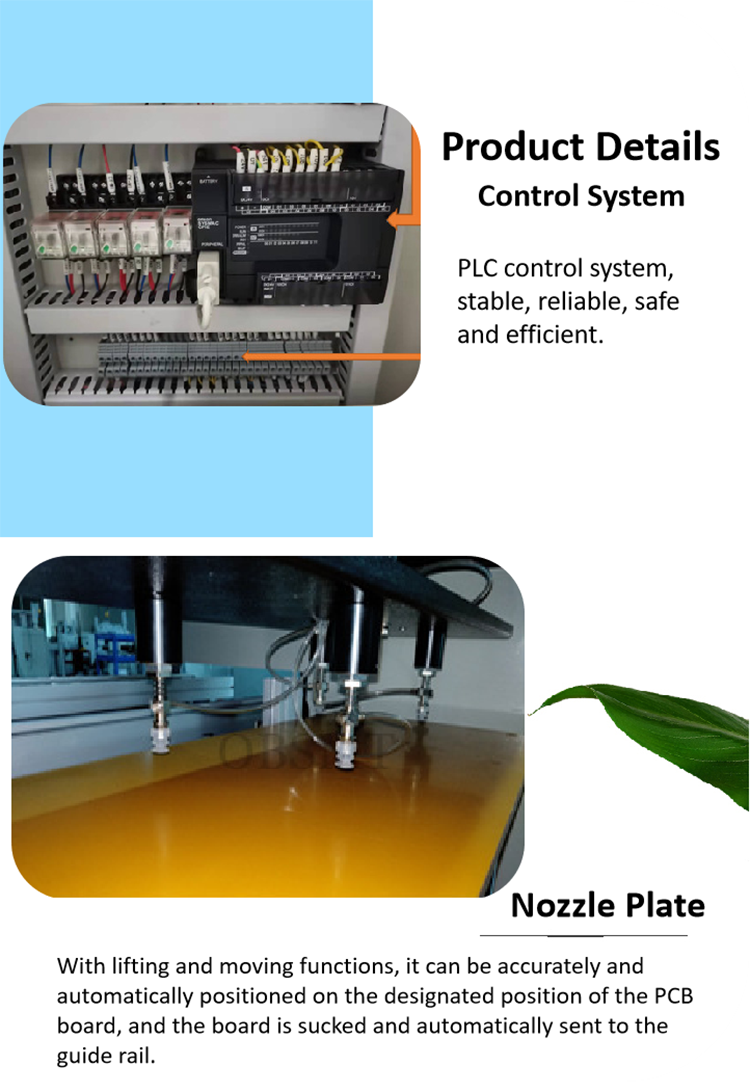

Control System	PLC control, electric sensor induction start.
Control panel	Touch screen control panel
Lifts	Imported ball screw lifting, sheet metal thickening integrated lifting platform.
Cylinder	SMC cylinder
Gas source	0.4-0.6Mpa
Translation device	Using stepping motor and guide rail to move.
Suction device	Four-point suction plate with vacuum generator and vacuum nozzle.
Conveyor belt	PCB board rail transport with green flat belt.
Frame material	All sheet metal 3.0mm cold plate welding, the surface is electrostatically sprayed.
